Conflict Rule Library Import Instructions (through Business Functions)

Conflict Rule Library Import Instructions (through Business Functions)

Library Import File

Save the Import file provided to a place accessible for the Client Application. For example the desktop of the computer which runs the Client Application.


Start the Client and login

Create back up file

Go to the menu “SoD Rule Library”
Select the option “ Business Functions”


In the dialog , select “Actions”
Select “Export with Relations”

This will create an export file with the Business Functions and relation to the Access points. Enter a name for the file and location to save it.
This file is a backup of the current content and only is required if any changes done by the import are to be reverted. Than this back up file can be re-imported.

Import New Business Functions to Access Point Relations

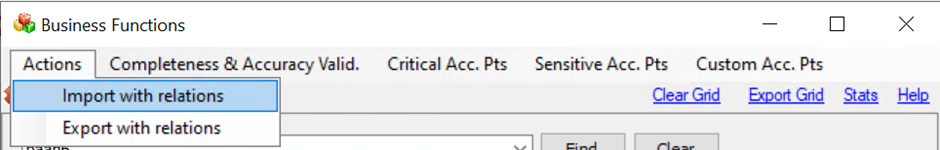

In the dialog , select “Actions”
Select “Import with Relations”

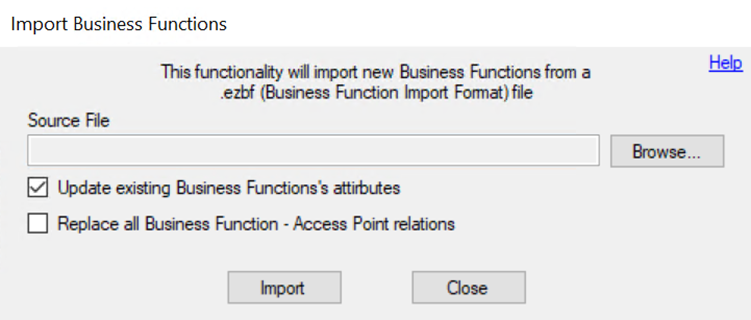

In the Pop up window
Browse to the file, which was just saved
Update existing Business Functions attributes
  1. In case there are no custom changes made to the Business Function attributes, this option can be checked.
  2. In case there are custom changes made to the Business Function, and if this option is checked, the attributes values will be reset to the Dynaflow default values.
  3. If you would like to keep the custom changes done, then do NOT check this option.
Replace all Business Function – Access Point relations
  1. It is recommended to NOT check this option, especially not in the situation that Custom sessions have been added to the Business Function.

Validation

In the web portal report:


The changes should be reflected.

Note

Since new sessions have been added to some Business Functions, more conflict could be identified in the next conflict scan.
